Product Details

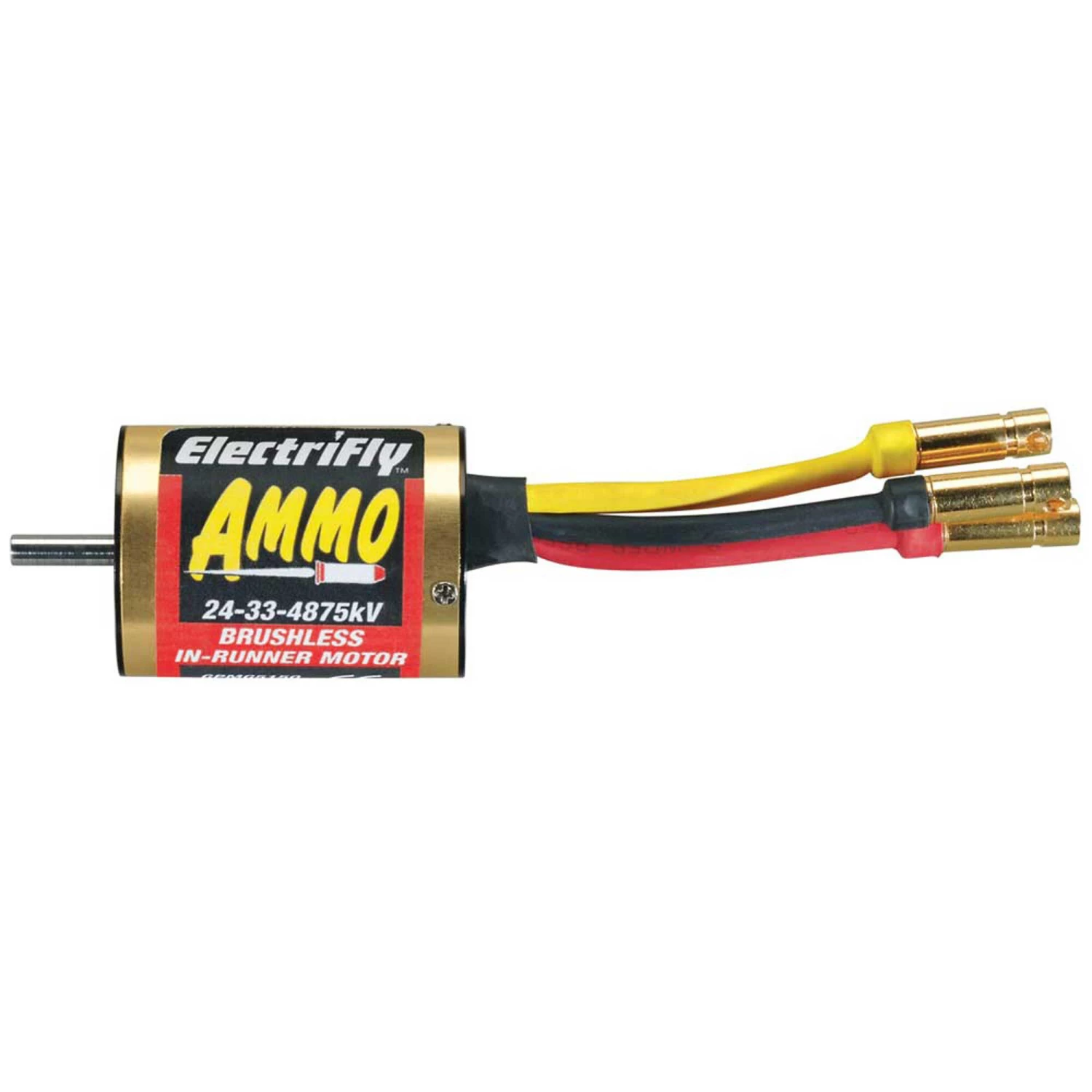

This is the Great Planes ElectriFly Ammo 24-33-4875kV Brushless In-Runner 2 Pole Electric Motor.
Key Features
- Brushless, slotless Ammo In-Runner Motors offer an incredible power-to-weight advantage and almost twice the efficiency of Brushed motors
- Ideal for direct or gear drive use
- Up to 89% efficient and virtually maintenance-free; no brushes to wear out
- Powered by “rare earth” Neodymium magnets for high torque and unmatched heat resistance
- Pre-installed gold plated connectors for plug and play operation when used with compatible ElectriFly Silver Series Brushless speed controls
- Double sealed bearings
- Two year warranty
In The Box
- (1) ElectriFly Ammo 24-33-4875kV Brushless Electric Motor
- (4) M3x5 machine screws
Needed to Complete
- (1) ESC
- (1) Propeller, suggested sizes are 8x4E-10x7E
Product Specifications
- Adjustable Timing: No
- Application: Airplane
- Connector Type: 3.5mm Bullet
- Input Voltage: 7.4-11.1V
- Motor Type: Brushless – Inrunner
- Number of Poles: 2
- Outer Diameter: 0.945″ (24 mm)
- Product Length: 1.3″ (33 mm)
- Product Weight: 2.4oz (67g)
- Recommended Prop Range: 8x4E-10x7E
- RPM/Volt (Kv): 4875 rpm/V
- Shaft Diameter: 0.118″ (3 mm)
- Shaft Length: 0.472″ (12 mm)
