Product Details

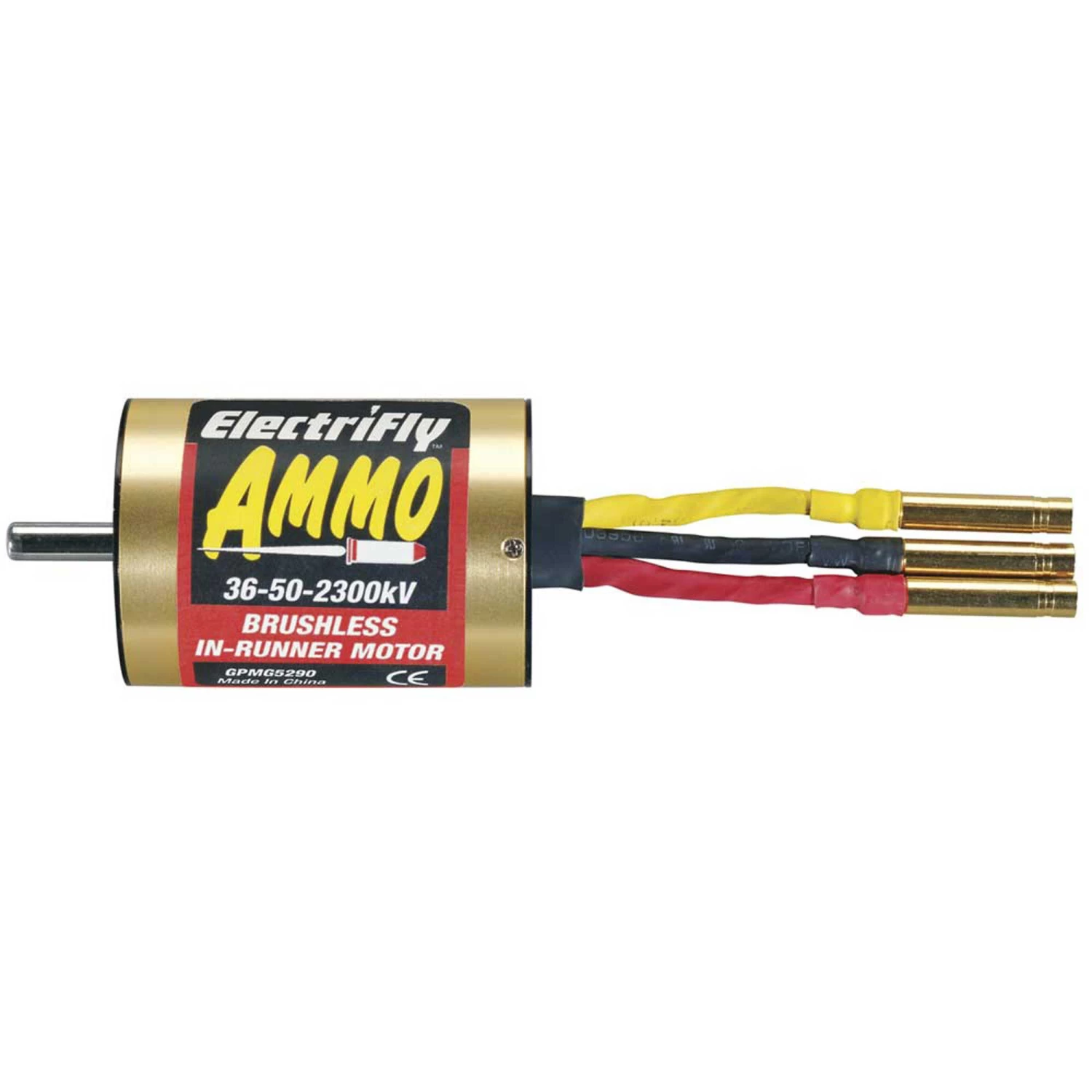

This is the Great Planes ElectriFly Ammo 36-50-2300kV Brushless In-Runner 2 Pole Electric Motor.
Key Features
- Brushless, slotless Ammo In-Runner Motors offer an incredible power- to-weight advantage and almost twice the efficiency of Brushed motors
- Ideal for direct or gear drive use; Up to 89% efficient and virtually maintenance-free; no brushes to wear out
- Powered by “rare earth” Neodymium magnets for high torque and unmatched heat resistance
- Pre-installed gold plated connectors for plug and play operation when used with compatible ElectriFly Silver Series Brushless speed controls
- Double sealed bearings
- Two year warranty
In The Box
- (1) ElectriFly Ammo 36-50-2300kV Brushless Electric Motor with connectors
- (4) M3x5 Machine Screws
Needed to Complete
- (1) ESC
- (1) Propeller: suggested sizes include 10x7E-13x8E
Product Specifications
- Adjustable Timing: No
- Application: Airplane
- Connector Type: 4mm Bullet
- Input Voltage: 14.8-18.5V
- Maximum Burst Current: 100A
- Maximum Continuous Current: 60A
- Motor Type: Brushless – Inrunner
- Number of Poles: 2
- Outer Diameter: 1.42″ (36 mm)
- Product Length: 1.97″ (50 mm)
- Product Weight: 8.6oz (243g)
- Recommended Prop Range: 10x7E-13x8E
- RPM/Volt (Kv): 2300 rpm/V
- Shaft Diameter: 0.197″ (5 mm)
- Shaft Length: 0.591″ (15 mm)
